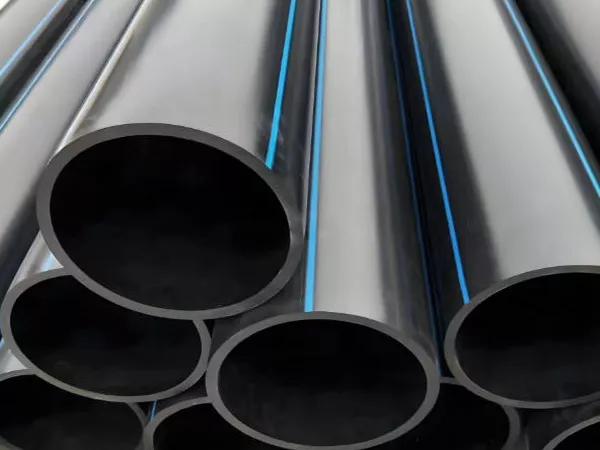

PE 3408 pipe

In modern chemical engineering, water supply and drainage, gas distribution, and many other industrial sectors, piping systems are like the blood vessels of the human body. Their performance is directly related to the safety, efficiency, and lifespan of the entire system. Among various pipe materials, high-density polyethylene (HDPE) pipe, particularly PE 3408 pipe (designated PE 100 grade according to ASTM D3350, with a density of 0.940 g/cm³ or higher), has become a preferred material for global infrastructure construction due to its superior overall performance. This article will delve into the core characteristics, applications, and advantages of PE 3408 pipe, presenting a truly modern, high-performance engineering pipe.

Understanding PE 3408 and PE 100: Definitions and Standards

First, we need to clarify two key concepts: “PE 3408” and “PE 100.”

PE 3408: The name originates from the American Society for Testing and Materials standard ASTM D3350. The “34” designation indicates a material density of 0.940 g/cm³ or greater (high-density polyethylene, HDPE), while the “08” designation indicates that the base resin has a minimum required long-term hydrostatic strength of 800 psi at 73°F (23°C). Simply put, PE 3408 is a material classification code that defines the fundamental physical and long-term properties of HDPE raw materials.

PE 100: This is one of the highest grades in the polyethylene pipe grading system specified in ISO 4427, the International Organization for Standardization. PE 100 grade material withstands a long-term hydrostatic strength of at least 10 MPa (100 bar) at 20°C and a 50-year service life. It represents superior resistance to slow crack growth, a higher pressure rating, and improved processing properties.

Relationship between the two: In the modern pipeline industry, high-quality HDPE resins that meet the PE 3408 standard typically also meet the performance level of PE 100. Therefore, when we talk about high-performance PE 3408 pipe today, we are mostly referring to the third-generation HDPE pipe that meets the PE 100 standard. It combines the best of both standard systems, ensuring top performance worldwide.

Core Advantages of PE 3408 Pipe

1. Excellent Long-Term Pressure Resistance and Service Life

This is its most core advantage. Based on the PE 100 standard, this pipe has a design life of 50 years or even longer at a water temperature of 20°C. Its excellent creep resistance (the ability to resist deformation under constant pressure) ensures extremely slow strength degradation under long-term pressure, providing long-term security for the entire pipeline network.

2. Unparalleled Flexibility and Impact Resistance

Compared to traditional rigid pipes (such as cast iron and cement pipes), PE pipes offer superior flexibility. This makes them highly resistant to damage from external loads such as uneven foundation settlement and earthquakes. Furthermore, their excellent impact resistance at low temperatures, especially in cold regions, effectively prevents pipe ruptures caused by external impacts or improper handling.

3. Excellent Chemical Resistance

PE 3408 pipe is extremely inert to a variety of chemical media, including acids, alkalis, and salts, and is resistant to most chemicals. This makes it ideal for conveying industrial wastewater, chemical solutions, and buried in corrosive soil environments. It eliminates the need for additional anti-corrosion measures such as cathodic protection, significantly reducing maintenance costs.

4. Excellent Cracking Resistance

Resistance to Slow Crack Growth: This is a key improvement in PE Grade 100. When subjected to point loads or scratches, cracks propagate very slowly, significantly improving the pipeline’s safety margin and long-term reliability.

Resistance to Rapid Crack Growth: Under extreme pressure shocks, PE pipe effectively inhibits rapid crack propagation, preventing catastrophic long-distance pipeline failures.

5. Excellent Hydraulic Properties and Scale Resistance

The pipe’s inner wall is exceptionally smooth, with a Manning coefficient as low as 0.007-0.009. This means that for the same pipe diameter, its conveying capacity is over 30% higher than traditional pipes, significantly saving pumping energy. Furthermore, the smooth inner wall is less susceptible to scale formation, ensuring minimal loss of conveying capacity over long-term use.

6. Lightweight, convenient and efficient installation

PE pipe weighs only 1/8 of steel pipe and 1/10 of cement pipe, significantly reducing the difficulty and cost of transportation and installation. It primarily utilizes butt fusion and electric fusion for connection, with joint strength even higher than the pipe itself, achieving true “zero leakage” systemwide connectivity and completely resolving the global problem of joint leakage.

7. Excellent environmental and hygienic performance

The raw materials are non-toxic and odorless, contain no heavy metal additives, and will not cause secondary contamination to the transported media (especially drinking water), fully complying with national drinking water hygiene standards. PE pipe is also a recyclable, green and environmentally friendly material, meeting the requirements of sustainable development.

Applications

Urban gas transmission systems: Serving as the main trunk and inlet pipes for medium- and low-pressure gas pipelines, it is preferred for its superior pressure resistance and sealing safety.

Municipal water supply and drainage systems: Used in urban tap water distribution networks and drinking water distribution, ensuring water quality safety. It is also used for rainwater and sewage drainage, offering corrosion resistance and a long service life.

Industrial piping systems: Widely used in process pipelines, circulating water systems, and wastewater transportation in the chemical, power, mining, and papermaking industries.

Agricultural irrigation systems: Serving as the backbone of drip and sprinkler irrigation systems, it offers corrosion resistance, anti-clogging, and a long service life.

Marine and aquaculture: Used for seawater transportation and water supply and drainage in aquaculture ponds, it offers excellent resistance to seawater corrosion.

Trenchless pipe jacking and lining repair: Leveraging its flexibility and long single-pipe length, it is widely used in trenchless projects such as directional drilling and pipe splitting to repair and update old pipelines, delivering significant economic benefits.

Pipeline Connection Technology

Butt Fusion: Using a dedicated HDPE Butt Fusion Welding Machine, the ends of two pipes or fittings are heated and melted, then pressure is applied to join them together. This method is suitable for connecting large-diameter pipes made of the same material, and offers high joint strength.

Electrofusion: An electrofusion fitting is placed over the pipe, and a dedicated electric fusion welding machine heats the resistance wire inside the fitting, fusing it to the pipe. This method is suitable for connecting pipes of varying diameters and locations (such as emergency repairs and tee connections), offering ease of operation and high reliability.



PE 3408 pipe exemplifies the perfect integration of modern materials science and engineering practice. With its toughness, exceptional adaptability, and long service life, it is participating in global infrastructure development at an unprecedented scale and depth.
