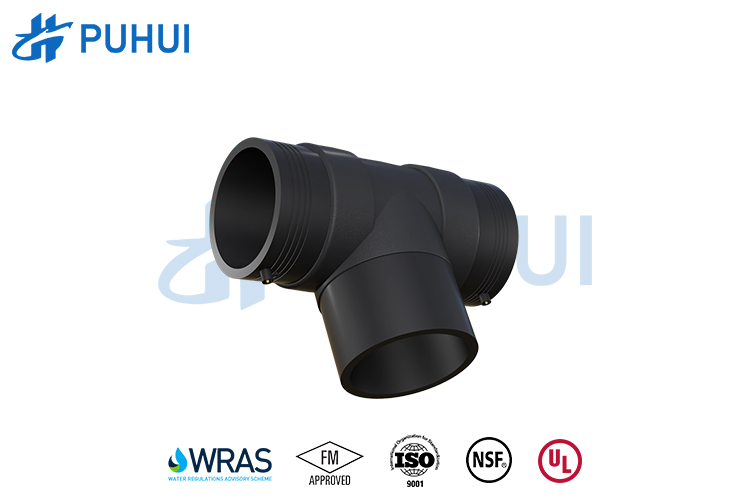

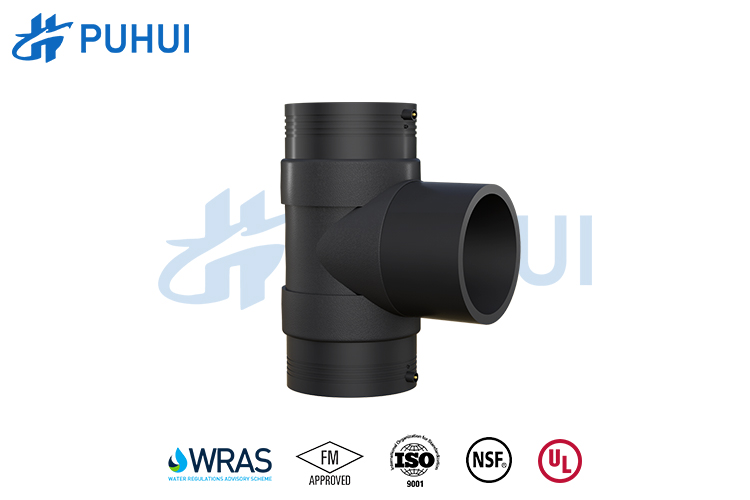

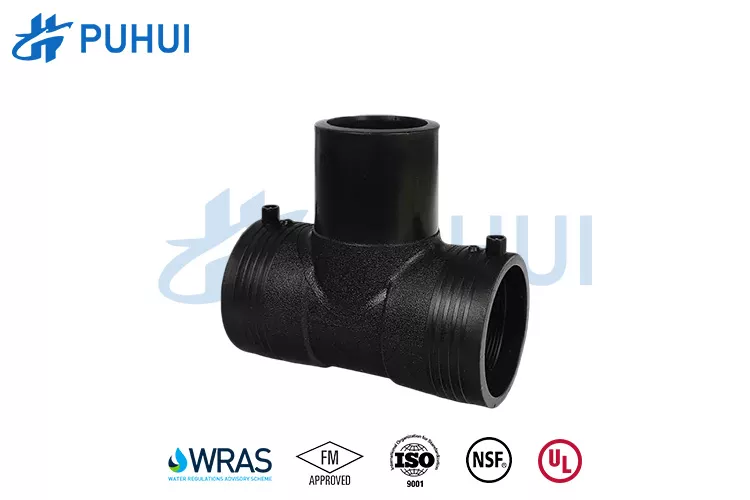

HDPE Electrofusion Equal Tee
Product Description
HDPE Electrofusion Equal Tee is mainly used to change the direction of the fluid and connect the main pipe with the branch pipe. As an important part of the piping system, it has important applications.
HDPE Electrofusion Equal Tee Role
1. Change the direction of the fluid: where the main pipe needs to be branched, HDPE Equal Tee can effectively change the direction of the fluid to ensure that the fluid can be smoothly diverted from the main pipe to the branch pipe.
2. Connection: It can connect different piping systems to form a complete piping network, thus realizing the transmission and distribution of fluids.
3. Widely used in many industries: HDPE isometric tee is widely used in petrochemical, oil and gas, liquefied gas, fertilizer, power plant, nuclear power, Shipbuilding, papermaking, pharmaceutical, food hygiene, urban construction, and other industries in the construction and overhaul of the project. In these industries, the pressure requirement of the fittings is high, and the maximum pressure can reach 600 kg, while the pressure of the living water pipe is low, usually 16 kg.
Difference between electrofusion and thermodiffusion isometric tee
The advantage of HDPE Electrofusion Equal Tee is that it can realize fast connection, while the inside of the pipe is smooth and flat, which does not affect the flow of the pipe.
The disadvantage is that electrofusion fittings are more expensive than heat fusion fittings.
HDPE Butt Fusion Equal Tee, on the other hand, has the advantage that the heat generated during the joining process accelerates the chemical reaction of the materials and makes the connection stronger. At the same time, hot melt fittings also have good corrosion resistance and pressure resistance and can withstand greater pressure. The disadvantage is that the connection is slow and you have to wait for the connection to be completed before you can continue working.
Product Specification
dn | D1 | L | Le | L2 |
50 | 66 | 149 | 54 | 27 |
63 | 79 | 165 | 55 | 28 |
75 | 93 | 184 | 60 | 29 |
90 | 110 | 213 | 70 | 40 |
110 | 134 | 241 | 75 | 40 |
125 | 151 | 260 | 80 | 40 |
140 | 168 | 281 | 85 | 40 |
160 | 192 | 315 | 93 | 50 |
200 | 240 | 360 | 104 | 55 |
225 | 265 | 395 | 120 | 55 |
250 | 296 | 437 | 125 | 63 |
315 | 371 | 518 | 133 | 70 |
355 | 419 | 577 | 140 | 70 |
400 | 474 | 623 | 143 | 70 |
450 | 525 | 703 | 156 | 75 |
500 | 587 | 725 | 151 | 85 |
Product Certificates
Cases
HDPE Electrofusion Equal Tee
Project: Water supply line
Product: DN110MM SDR11 PN16
Location: Mozambique
