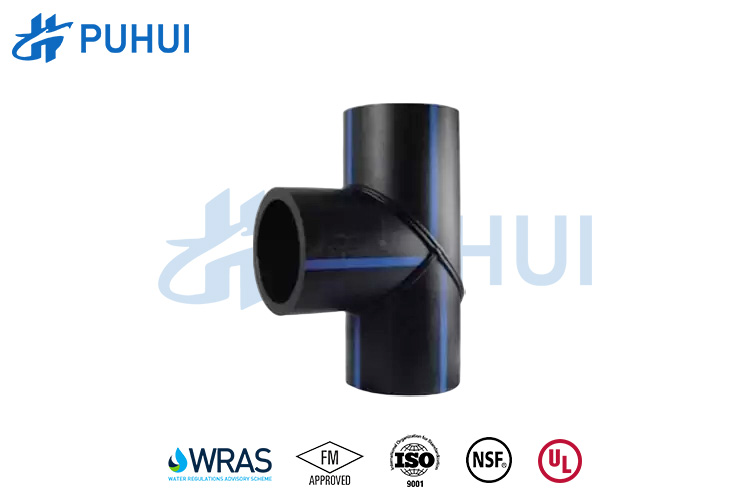

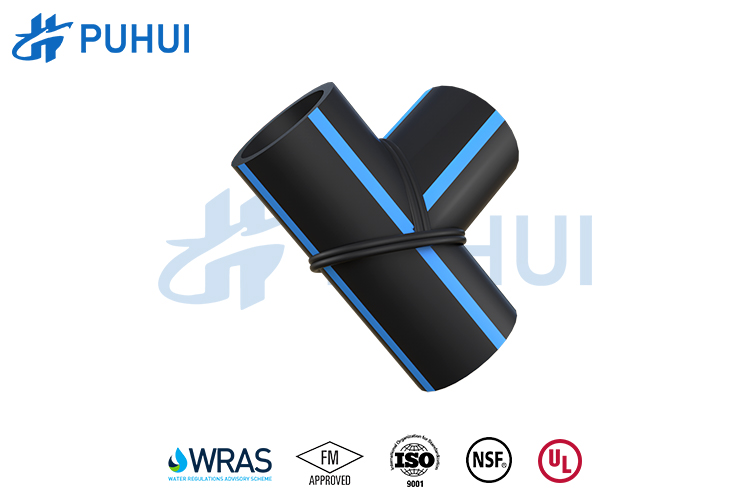

HDPE Fabricated Tees
Product Description
While most of the project can be done with straight HDPE pipe and standard fittings, it is also important to have quality made custom-fabricated items, manufactured to standard, and delivered to site within the time-frame required.
Puhui Industry HDPE Fabricated Tees are means to solve installation situations where common fitting fail, meet more complex and cost efficient pipeline designs.
Advantages of HDPE Fabricated Tees
The use of PE pipes and fittings is becoming more and more extensive, and many new uses require specific specifications and thicknesses. Therefore, for those customers who require specific specifications and thicknesses, Puhui Industry’s provision of HDPE Fabricated Fittings becomes a necessary choice. This customized service can provide personalized solutions based on customer needs and application scenarios, ensuring that the product meets the customer’s specific requirements.
Product Specification
Dn | Le | L | Z |
90 | 100 | 590 | 295 |
110 | 150 | 610 | 305 |
125 | 150 | 630 | 315 |
140 | 150 | 640 | 320 |
160 | 150 | 660 | 330 |
180 | 150 | 680 | 340 |
200 | 150 | 700 | 350 |
225 | 150 | 730 | 365 |
250 | 250 | 1150 | 575 |
280 | 250 | 1180 | 590 |
315 | 300 | 1320 | 660 |
355 | 300 | 1360 | 680 |
400 | 300 | 1400 | 700 |
450 | 300 | 1450 | 725 |
500 | 350 | 1600 | 800 |
560 | 350 | 1660 | 830 |
630 | 350 | 1730 | 865 |
710 | 350 | 1810 | 905 |
800 | 350 | 1900 | 950 |
900 | 400 | 2100 | 1050 |
1000 | 400 | 2200 | 1100 |
1200 | 400 | 2400 | 1200 |
Product Certificates
Cases
Product: HDPE Fabricated Tee
DN800mm SD17 PN10
Location: Myanmar
