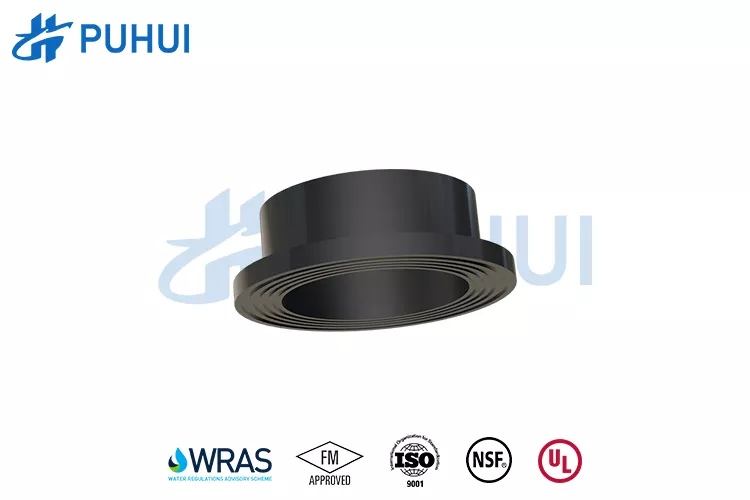

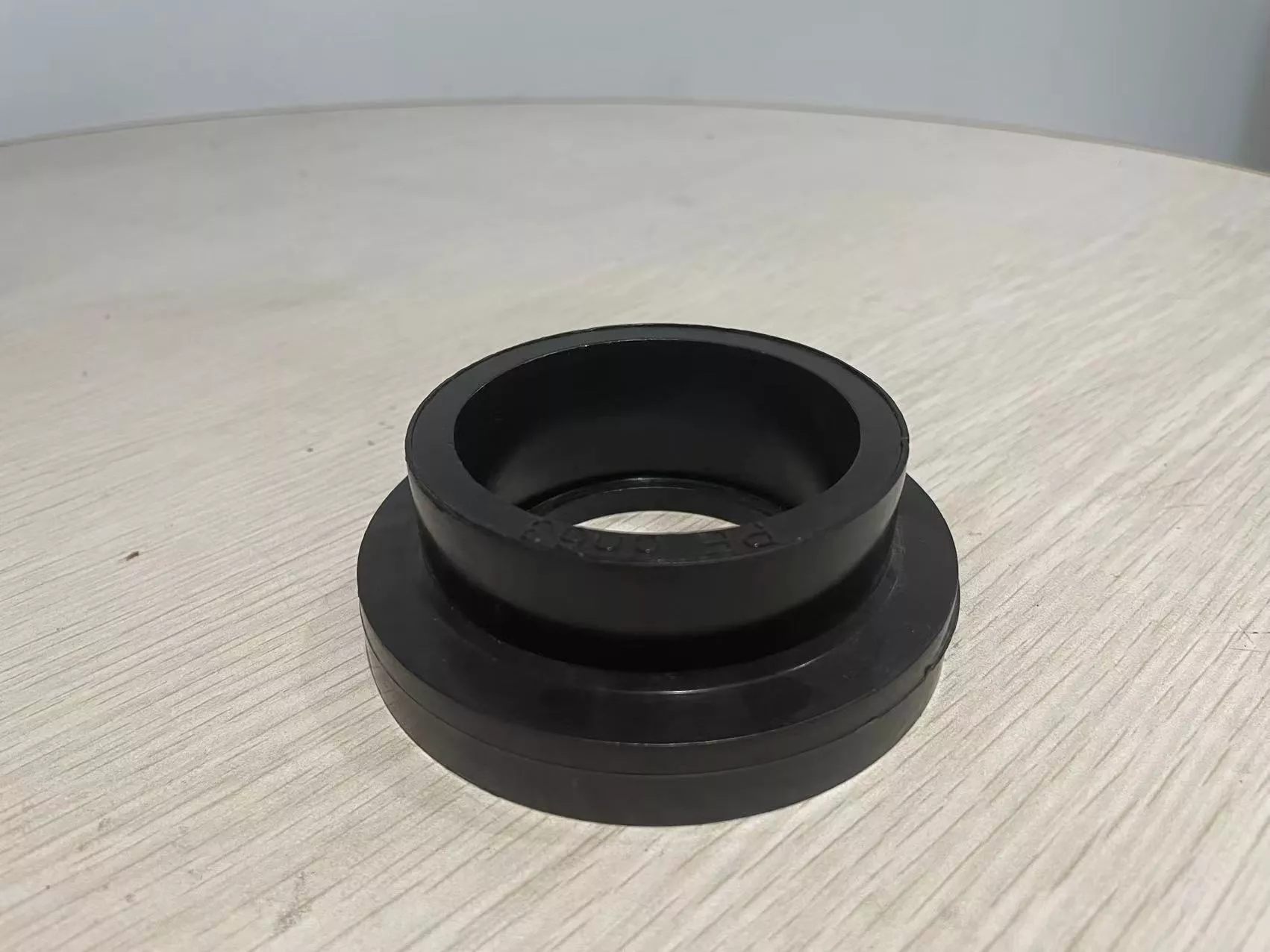

Socket Fusion Stub End
Product Description
Socket Fusion Stub End is a pipe connection device, which is divided into two parts: the socket and the spigot. The socket is the socket at the end of the pipe, and the spigot is the spigot of the next pipe. The socket stub has a compact structure and the connection error can be adjusted. It is one of the commonly used connection methods in the pipeline system.
Socket Fusion Fittings is an industry reference for high density polyethylene (HDPE) plastic fittings used to permanently join two or more segments of HDPE plastic pipe through a process known as heat fusion or socket fusion welding. This method of joining pipe and fitting involves a heater tool that evenly warms the plastic pipe and fitting simultaneously to a melt point where the two can be joined by insertion of the melted pipe into the socket of the melted fitting. Once inserted properly and allowed to cool, the two parts become one continuous bond of HDPE plastic that cannot be separated and form a connection stronger than its individual parts.
Product Specification
Name | Spec | OD(mm) | L(mm) | Socket Length(mm) | Collar(mm) |
Socket Fusion Stub End |
20 | 29 | 24 | 18 | 47 |
25 | 33 | 24 | 18 | 52 | |
32 | 42 | 26 | 23 | 61 | |
40 | 51 | 30 | 24 | 71 | |
50 | 60 | 30 | 25 | 80 | |
63 | 77 | 34 | 28 | 100 | |
75 | 88 | 40 | 32 | 118 | |
90 | 108 | 46 | 33 | 128 | |
110 | 129 | 46 | 38 | 150 |
