Standard dimension ratio, also known as standard outside diameter dimension ratio (SDR for short), is an important parameter in the field of pipeline engineering. It refers to the ratio between the nominal outside diameter (DN or De) of the pipe and its nominal wall thickness, i.e. SDR=dn/en. This ratio not only controls the wall thickness of the pipeline, but also directly determines the ability of the pipeline to withstand internal pressure, and is an indispensable part of the pipeline design and selection process.

In pipeline engineering, there are many sizes and specifications of pipes, covering a wide range from domestic water pipes to large industrial pipelines. Different pipe sizes are suitable for different application scenarios, Small-caliber water pipes are mainly used for small-scale water supply such as homes and offices, while large-caliber water pipes are widely used in factories, large buildings, and other places that need a lot of water. In addition, the pipe material is also an important factor affecting its size selection, such as PPR, PVC, HDPE, and other plastic pipes because of their good corrosion resistance and portability, have been widely used in the civilian field.

HDPE sdr11 pipe
HDPE sdr11 pipe

The role of Standard dimension ratio

The introduction of standard dimension ratio SDR provides a standardized design and selection method for pipeline engineering. By determining the SDR value, the wall thickness of the pipeline can be easily calculated, so as to ensure that the pipeline has sufficient safety margin when it is subjected to a certain internal pressure. At the same time, the unification of SDR value also makes the pipes produced by different manufacturers comparable in size and performance, which provides convenience for the procurement and construction of pipeline projects.

In practical application, the selection of SDR value needs to be comprehensively considered according to the working pressure of the pipeline, the characteristics of the medium, the use environment and the economy. For example, in a pipeline transporting high-pressure gases or liquids, a smaller SDR value needs to be selected to increase the wall thickness of the pipeline, thereby improving its bearing capacity. In some cases with strict requirements on weight and cost, a larger SDR value can be selected to reduce the wall thickness and reduce the weight and cost of the pipeline.

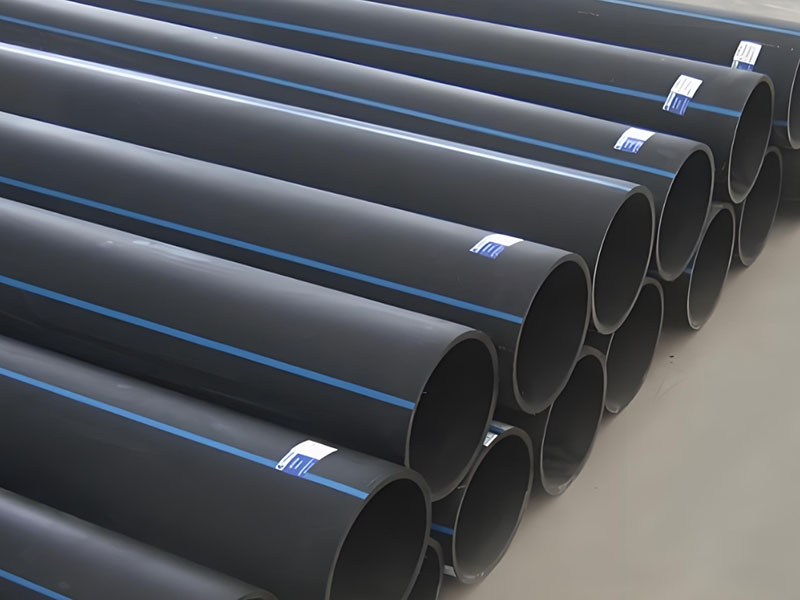

SDR 9 hdpe pipe
SDR 9 hdpe pipe

Matters needing attention

It is worth noting that although the SDR value provides a standardized method for pipeline design and selection, it still needs to be flexibly adjusted according to specific situations in practical applications. For example, pipes used in special environments may require special materials and wall thickness to meet specific performance requirements. In addition, with the continuous development of pipeline engineering technology, new materials and processes continue to emerge, which also provides new possibilities and challenges for the selection of SDR value.



In short, SDR is an important parameter in the field of pipeline engineering, which is of great significance to ensure the safe, reliable and economical operation of pipelines. In the process of pipeline design and selection, factors such as working pressure, medium characteristics, use environment and economy should be fully considered, and SDR value should be reasonably selected to ensure the smooth progress and long-term stable operation of pipeline projects.
